Studholme 11 - more trackwork

 DB says:

'The schedule' allowed a few hours back on the Studholme modules today.

It has now been more than a year since I started this, further cementing the blog's status as holder of the Guinness record for longest-average-elapsed-time module builds (thanks also to Paekakariki and Waihao Forks). Clearly long gone are those youthful days of blitzkrieging up a module in a week.

Its been a warm 10 days down here on The Mainland, and a kink revealed itself upon my arrival. Half a mm of rail was taken out of that track and the thing reconnected. All the other tracks seem fine, as a little space was allowed for this in the rail joints.

Some manual point controls have been added to the points on the Waimate Branch (backdrop) side of the layout.

The three 'mainline' points at either end of the module set will be the most used, so are being made DCC friendly (whatever that means) and each is controlled by a slide switch discretely mounted at the side of the layout, via piano wire.

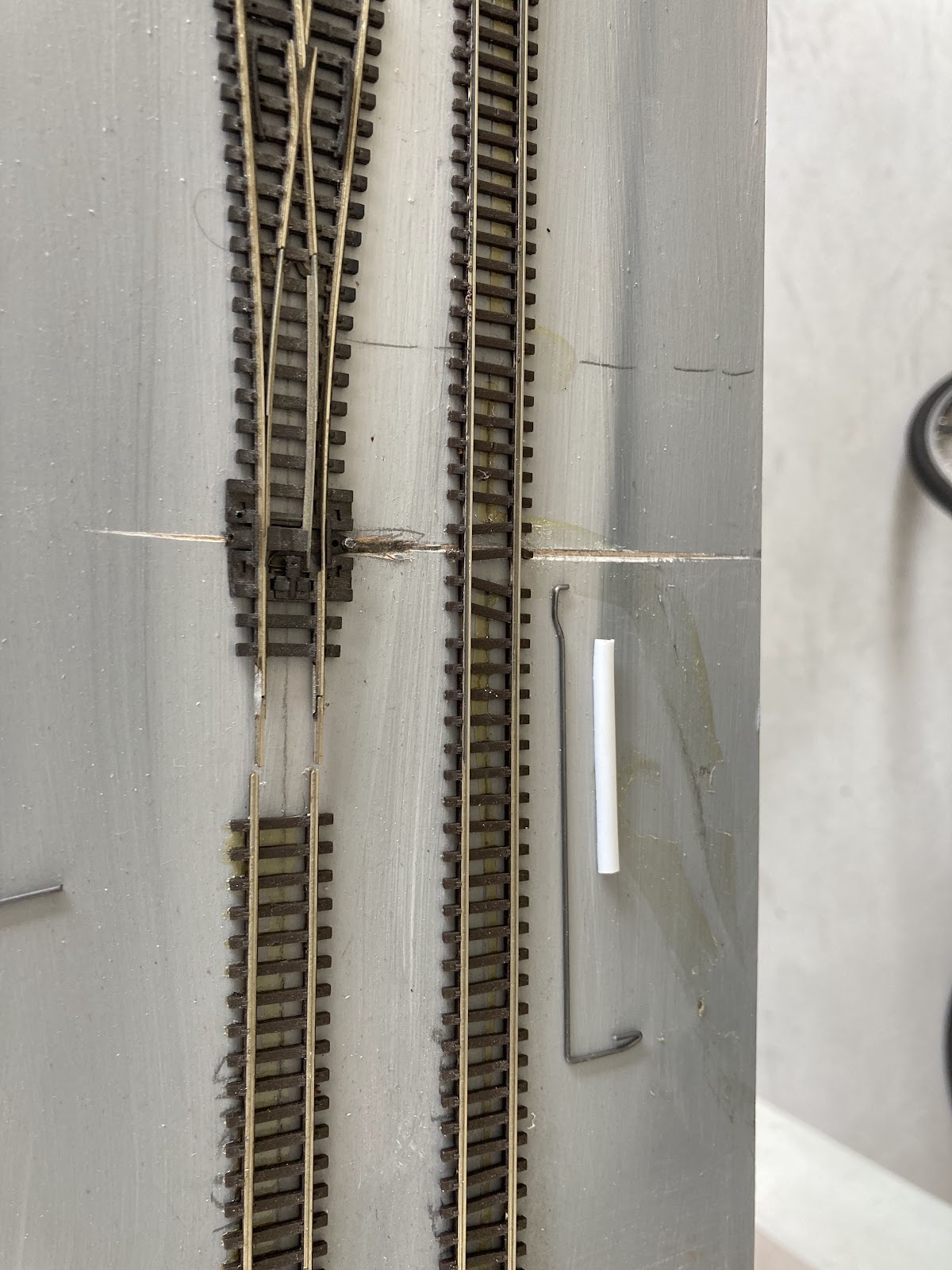

The four other points on the branch side are 'as-is' Peco points, controlled by more of this chunky piano wire and covered with some oversized tubing in a most agricultural fashion. speaking of agricultural, I see the code 55 Waimate Junction Y here still has some code 80 tails soldered onto it from its last use! They remain in place as the only code 80 on the modules!!

The three points on the other side (east side with access to the goods shed and fruit siding) are as-is with no remote control at this stage. I doubt they'll be used much, but if they are, I suppose I could work them with some actuating wire under the module.

So track has today been fixed down right up to the three south end mainline points, which I still need to make DCC-friendly. The coal/seed siding was also spaced further out as it looked a little close to the others. Darryl P suggested extending the coal/seed siding to serve stockyards there, which might be feasible. I certainly want to have the Studholme Hotel modelled as a flat, and the stockyards should/could be to the south of this, and a good way of fitting something small into the thin gap between the branch's curved point and the backdrop. We shall see.

The 2010s-era 17-wagon coal train was laid out on the loop to check sizing. As predicted, the loop is about 10cm short, so I'll have to drop a wagon if I want the train completely ensconced, although a train this length would be fine in reality, as it's in and clear clear of the mainline for crossings, and an oncoming shorter train can safely run into the siding (closer to the camera in the pic above), although some shuffling of the coalie for-and-aft might be required to let the shorter train out. In hindsight I should have positioned the mainline points out closer to the ends of the module set, but its a bit hard to move them now.
